Common Ultrasonic
Horn cracking problem

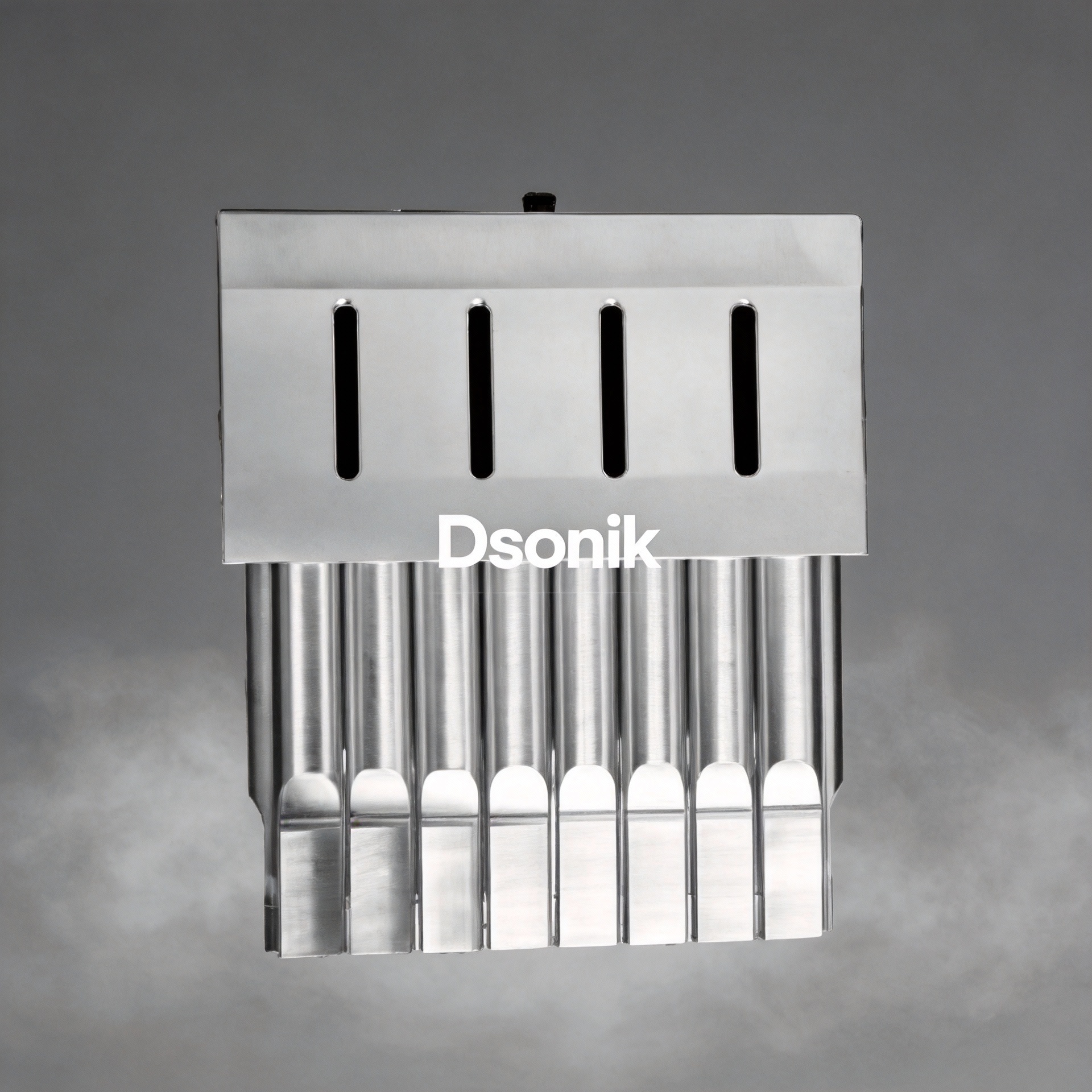

Ultrasonic horn cracking,
or sonotrode cracking, is a common and costly issue in ultrasonic plastic welding systems. The horn vibrates at higher
frequency under high stress, leading to cracks from material fatigue. Cracks may be internal or surface-level and
usually begin small before spreading.
Symptoms of a Cracked Ultrasonic Horn
·
High-pitched noise:
Whistling or ringing from cracked surfaces.
·
Low performance:
Weak or inconsistent ultrasonic output.
·
Increased power draw:
Higher wattage even during no-load tests.
·
Overheating:
Horn, stack, or transducer exceed ~50°C / 122°F, increasing fatigue risk.
·
Frequency instability:
Shifts in frequency or amplitude during scans.
·
Severe failure:
Horn stops working or damages the transducer (possible cracked ceramics).
Crack detection tip:
Spray foaming cleaner on the horn and run a brief ultrasonic burst; bubbles
indicate cracks. Internal cracks may need a send the horn to supplier for
frequency analysis.
Common Causes of Horn Cracking
Here are the primary reasons, ranked by frequency in industry
reports:
High-cycle vibration leads to
fatigue, worsened by heat—if the horn gets too hot, cracking risk increases.
Excessive amplitude, improper
stack tuning, or driving the horn past its elastic limit can cause failure.
Stress concentrations from sharp
corners, abrupt transitions, improper slotting, poor material, or finish raise
crack risk. Radial-mode tuning and raw material defects also contribute.
Nicks, gouges, and wear are
stress risers that initiate cracks quickly.
Over-tightening, loose
assemblies, or misalignment all cause uneven loading and cracks.
Titanium is best for most
horns due to high fatigue strength; aluminium/steel is less suitable.
Horn-to-fixture contact,
abrasive materials, and continuous use without cooling accelerate wear and
cracking.
---
Prevention & Solutions:
·
Keep
horn temperature below 50°C with cooling as needed.
·
Maintain
stack: clean regularly, retune after changes, and apply correct torque.
·
Use FEA
to design horns with even stress and prefer profiled over stepped designs. Add
fillets, avoid sudden cross-section changes, and select proper
materials/coatings.
·
Don’t
operate cracked horns—this can damage the system further. Monitor power,
frequency, and amplitude for early signs of issues.
·
Repair
minor surface cracks by machining if possible; internal/recurrent cracks
require replacement.
·
Always
re-tune after repairs.
Quick Troubleshooting Checklist:
·
Run
no-load tests; check for abnormal noise or power draw.
·
Inspect
visually and with foam for cracks.
·
Verify all
torque values.
·
Monitor
operating temperature and compare with baseline data.
·
If
repeat cracks occur, adjust horn geometry.
·
Cracks
typically point to underlying process or stack problems—address design, tuning,
or operational factors. Manufacturers offer guides and diagnostic tools for
maintenance.

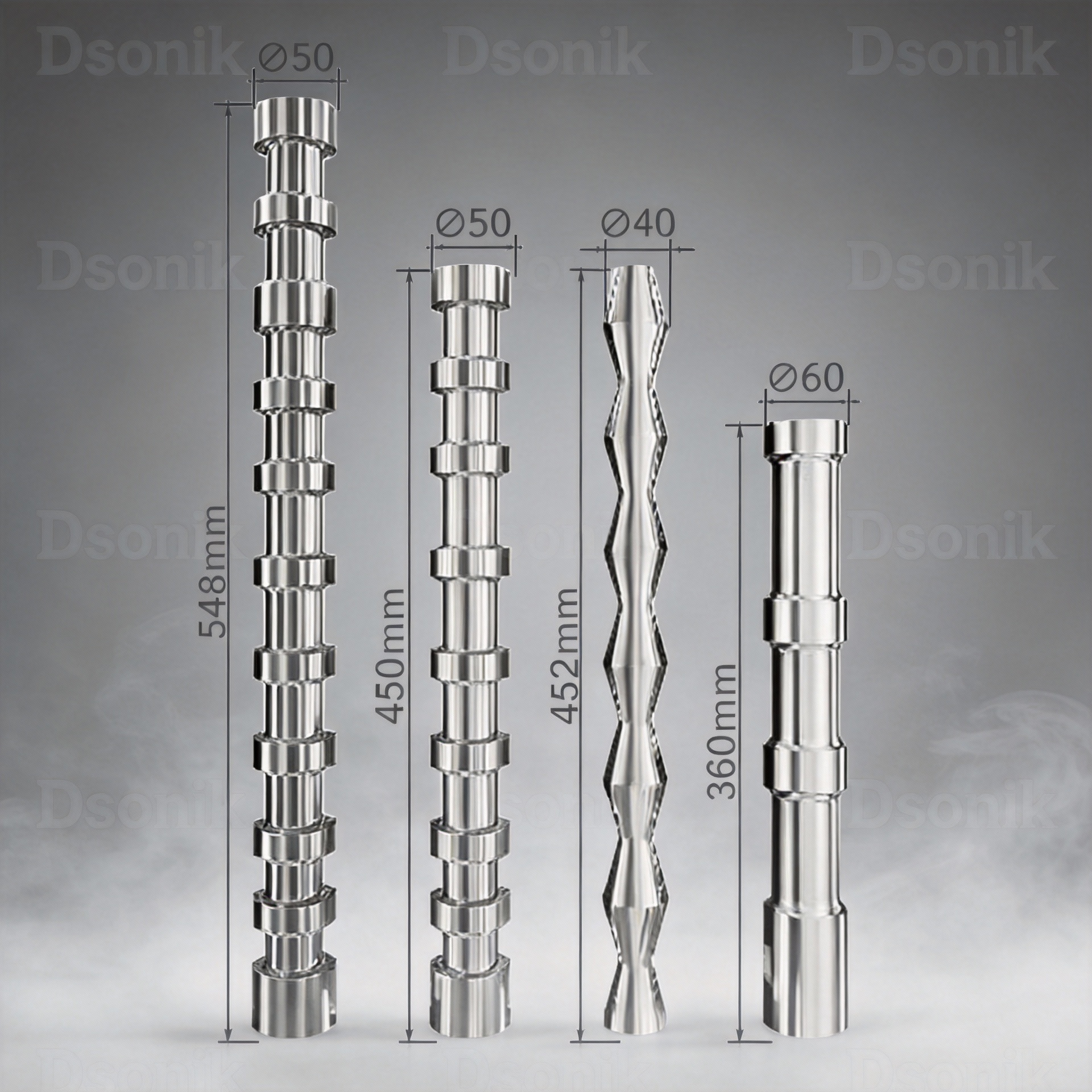

Dsonik has rich experience of 23 years in ultrasonic horn manufacturing and had worked in more than 1000 application. Dsonik manufactures ultrasonic horn and fixture for any brand ultrasonic plastic welding machine and Dsonik use imported material like Titanium, Aluminium and Steel. If you're experiencing this with a specific horn material, frequency, application (plastic welding, etc.), or welder brand, provide more details to Dsonik for more targeted advice!
